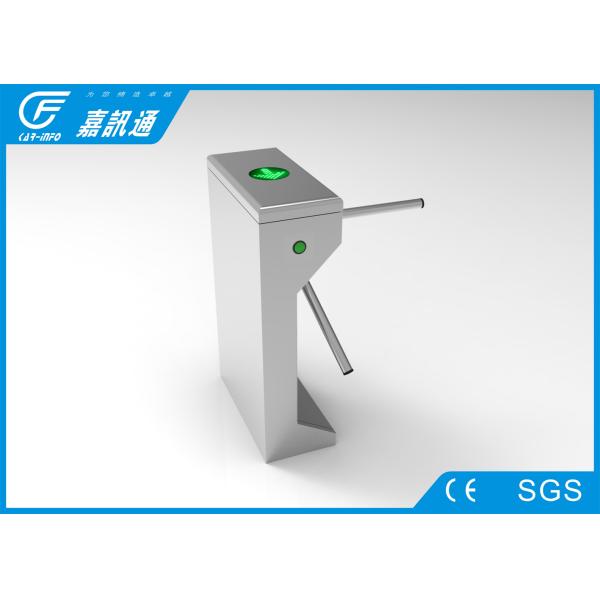

Automatic 304 Stainless Steel Turnstiles Tripod Gates Coin Collector 560 * 280 * 980mm

Technical specification:

Control of the turnstiles gates

• Controlling gate traffic direction through an access control device: locked or free exit
• Includes reader interface and power supply for low voltage 24 VDC operation
• Supplied fail-lock or fail-safe
• Self-centering mechanism cushioned by hydraulic shock absorber
• Mechanism housing and pedestal fabricated from 3/l6" carbon steel
• Top cover, safety panel and tripod arms constructed of polished stainless steel
• Easy to install and maintain

Option:

remote light indicators

wireless remote control

emergency unlocking devices

intrusion detectors and sirens

Unit type

• Single-arm tripod turnstile, bi-directional passage mode
• Full frame base

Coin collector turnstiles

• Equipped with electronic coin or token acceptor
• Capable of accepting any size token or coin from a dime up to 1-1/16″ in diameter
• Locked coin compartment constructed as part of heavy steel pedestal frame
• Coin return chute returns incorrect coins or tokens to user
• Self-centering tripod arm assembly
• Fasteners and moving parts are concealed by stainless steel cover and safety panel
• Finish is rust and wear resistant black textured powder coating

Main feature:

1. built-in control board or remote control unit supplied as standard

2. models for indoor and outdoor application (under shelter)

3. models with anti-panic barrier arms

high throughput rate

4. bi-directional passage control

5. LED directional indication / status lights

6. Safe supply voltage 12 – 36V

7. Key override control for emergency situations

8. inertia-free and smooth rotation mechanism

Established in Y1998,Jiaxuntong computer technology Co.,Ltd,is a professional developer and manufacturer of intelligent building access control system and high-end channel equipments including tripod turnstile,swing turnstile,flap turnstile,full height turnstile and speed gate.

After years of efforts in intelligent system applications,we have broken the traditional rules to achieve revolution in hi-tech intelligentized system applications by using new concept which turns technology into fashion life.As one of the leading company in the industry,we have established our sales channel in more than 70 cities all over in China and are expending our markets in overseas countries and regions.

We have totally 200 staff members,including a very strong R&D team with 30 engineers ad technicians.They are always ready to meet your OEM/ODM requests.Backd by our experience and creativity,our products feature reliable performance and unique functions.Making the best Channel equipments in China,Jiaxuntong is adhering to the objective of "Leading in China,Famous all over the world".

If you are interested in any of our products,please contact us,we will do our best to meet your needs.
